Box Type Compact Substation

Collect
  • DESCRIPTION

PRODUCTS DETAILS

Product Description

Product Name:

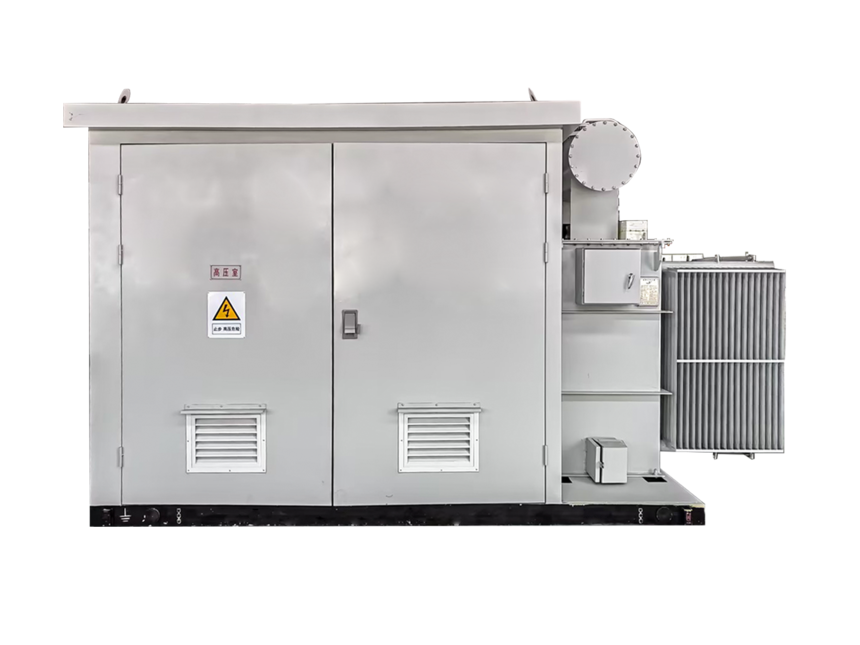

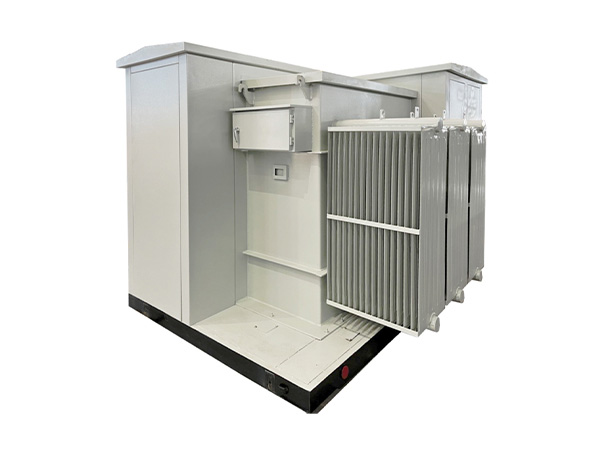

Hua-style wind power photovoltaic box-type substation

Basic Information

The box transformer is divided into three parts: high voltage chamber, low voltage chamber and transformer. The Chinese-style box transformer is mainly applied to the step-up box transformer of new energy power generation.


Cooling MethodOil-immersed transformerWinding TypeTwo-winding transformer
Phase3Winding MaterialCooper/Aluminum
Core MaterialSilicon SteelBrandGuangte
OrginChinaCertificationISO9001, CE, CCC, CQC, PCCC, UL, CNAS, MA, ilac-MRA
SpecificationAs per designWarranty1 year
ODMAvaliableOEMAvailable
High Voltage10~40.5kvLow Voltage0.6/0.8kv or Customized
Tapping Range+-5% or +-2*2.5%Frequency50/60Hz
Connection GroupYyn0 or Dyn11Impedance4-8%
MOQ1 setPackage SizeAs per design

The Hua-style box-type substation is particularly suitable for distribution projects away from residential areas, wind power projects, and large-capacity single-box transformers in wind and photovoltaic projects. In these applications, the Hua-style box-type substation can fully leverage its advantages of compact structure, safety, reliability, and ease of maintenance, providing strong support for the stable operation of power systems.
The price of the Hua-style box-type substation depends on its configuration and capacity, typically starting from 2000 kVA, with the maximum single-unit capacity around 10,000 kVA.
As a specialized type of prefabricated substation, the Hua-style box-type substation is widely used in power systems due to its compact structure, safety, reliability, ease of maintenance, environmental friendliness, energy efficiency, and intelligent design. It particularly demonstrates its unique advantages and value in renewable energy fields such as wind and photovoltaic power.
