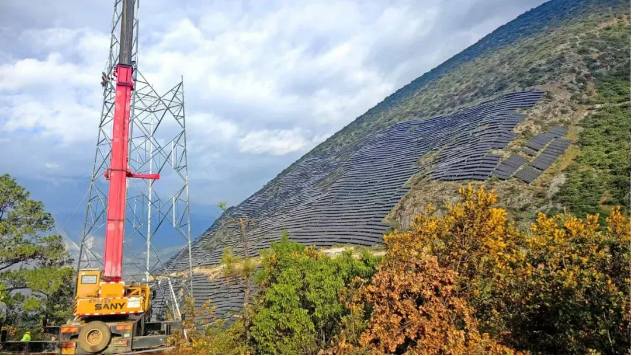

Composite photovoltaic project

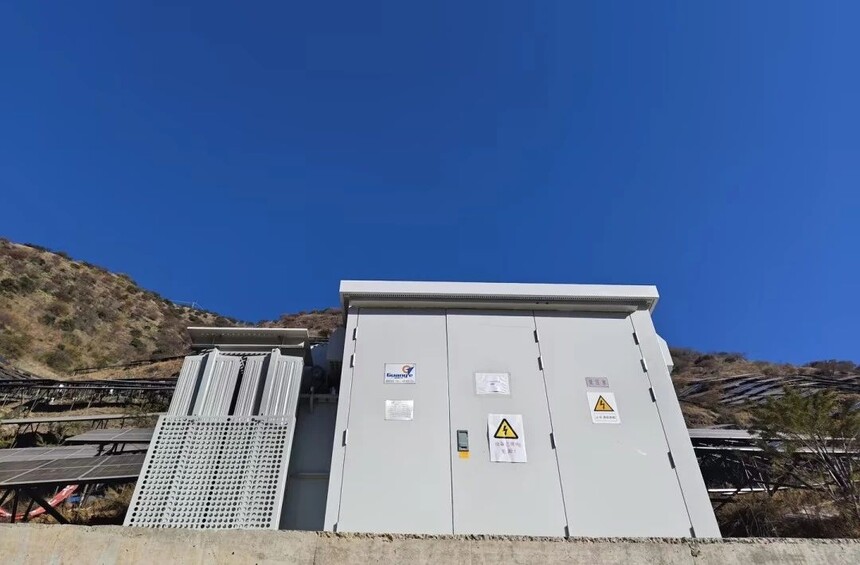

The Chinese-style box-type transformer independently developed and produced by Guangte Electric is 5not only suitable for outdoor use, occupies a small area and has high safety performance, but also has a split structure and intelligent monitoring functions, making it an ideal choice for photovoltaic projects.

Its product advantages are mainly reflected in the following aspects:

1) 3D Stereoscopic Technology Innovation

○ Guangte Eletric's Chinese-style box-type transformer adopts a three-dimensional wound iron core design. Compared with the conventional domestic laminated core design, it has the characteristics of small no-load current, low no-load loss, low noise and high efficiency, stable structure, and strong resistance to sudden short circuits;
○ The special design of the three-dimensional wound iron core makes its iron yoke lighter and relatively smaller, saving material usage and reducing manufacturing and transportation costs;
○ The three-dimensional wound iron core transformer has a lower noise level because the iron cores are tightly wound together, which meets the requirements of modern industry for environmental protection and noise control;
○ The magnetic circuit design of the three-dimensional wound iron core is more reasonable, which can effectively reduce leakage magnetic field, improve the power factor, and thus improve the power supply quality of the power grid and improve the power supply efficiency.

2) Outdoor placement, strong applicability

○ The fuel tank is fully sealed and does not allow any liquid or gas to leak or infiltrate (except for the normal pressure release of the pressure relief protection device);

○ Ensure that the enclosure protection grade meets the requirements of IP54;

○ The creepage distance of primary live parts (relative and ground) of this series of products is 300mm at 35kV and no less than 460mm at 35KV. The technical requirements are higher than the standard design.

3) Low-carbon, intelligent, safe and reliable

○ Compared with traditional box-type substations, Guangte Electric's three-dimensional wound iron core Chinese-style box-type substation has low noise, low loss, low cost per kilowatt-hour, is clean and pollution-free, requires fewer production consumables, and saves energy;
○ The high-voltage side uses an integrated isolation vacuum circuit breaker, equipped with local/remote electric operation functions, auxiliary current and voltage transformer measurement and sampling, to meet remote automation needs;
○ The low-voltage side uses the domestic first-line Eaton ProLogium brand circuit breaker. The phase contacts of the low-voltage circuit breaker are separated by insulating partitions, and the upper and lower ends are sealed with acrylic plates to ensure the safety of operation and maintenance personnel and ensure reliable operation and maintenance.

4) Prevent misoperation and interlock more reliable

The doors of the high- and low-voltage compartments of the combined transformer both open outwards and have handles and locks. The door opening angle is no less than 90° and is equipped with a positioning device. An interlocking mechanism is employed to ensure that the high-voltage compartment door can only be opened when the low-voltage compartment door is opened.

○ Combined transformers are usually cooled by natural ventilation at room temperature. When the temperature is high, exhaust fans are added for strong ventilation to speed up the cooling of the low-voltage room and compensation room.

5) Each room is separated and the operation is reliable

○ High-voltage switch: adopts integrated isolation vacuum circuit breaker with automation function;

○ Low-voltage switch: using the domestic first-line Eaton ProLogium brand, quality is guaranteed;

○ Shell: The product shell protection level is IP54;

○ Fuel tank: Ensure that when the oil temperature is 75℃, the internal pressure of the fuel tank does not exceed 15-35kVPa. The fuel tank is made of high-quality tensile plate to meet the expansion volume requirements of the fuel tank;

○ Box body: The box body door adopts double-layer door and double seal, and the box body joint is sealed with sealing strips to prevent dust, rain and snow;

○ Other component structures: designed with a separate cable compartment; designed with a heat sink with anti-theft function; reliable shockproof and windproof design; low-temperature circuit breaker for low voltage; anti-condensation and heat dissipation devices.

The application of Chinese-style box-type transformers in photovoltaic projects can effectively improve the performance of photovoltaic power plants, reduce construction and operation and maintenance costs, and improve system stability and reliability. With the rapid development of the photovoltaic industry, Hua-style box-type transformers are becoming an ideal power distribution equipment solution for photovoltaic projects.

The new energy industry is becoming a vital force driving global energy transformation and achieving sustainable development. Guangte Electric, committed to its mission of "making the world more energy-efficient," empowers green development with integrated, efficient, energy-saving, and environmentally friendly power solutions. Going forward, Guangte Electric will continue to leverage innovative technologies and deep industry insights to contribute wisdom and strength to the sustainable development of the new energy industry through its evolving green "shortcuts," working with its customers toward a zero-carbon future.
